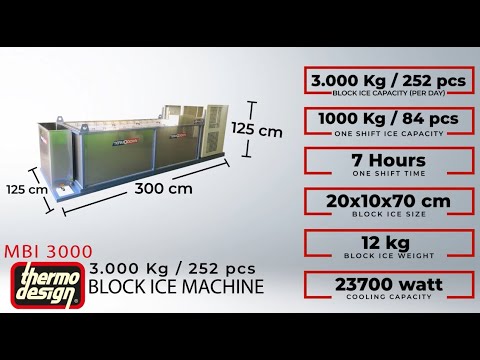

MBI 3000

Block Ice Machines (Brine Type)

ABOUT PRODUCT

Block ice is an ice type created by immersing cans filled with fresh water in a brine tank. The temperature of the brine is -12°C, which causes the water to freeze into solid blocks with a temperature of -5°C.

One of the reasons for block ice’s popularity is the fact its form allows an easy handling. It can be easily transported for a long distance without refrigerated vehicles. Termodizayn block ice machines are manufactured for commercial and industrial applications and have been designed to produce clean and fresh block ice in a trouble free manner.

• Ice blocks of 15, 20, 25 or 50 kg
• Refrigerant R404a, R507a, R717 or R22

MODEL PRICE

To see the price please Login or Register.

Get Your Bid

TECHNICAL INFORMATION

Model Name
MBI 3000
Block Ice Capacity (Per Day)
3000 Kg / 252 pieces
One Shift Ice Capacity
1000 Kg / 84 pieces
One Shift Time
7 Hours
Block Ice Size
20x10x70 cm
Block Ice Weight
12 kg
Cooling Capacity
23700 watt
Compressor Displacement
64,7 m3/h
Compressor Type
Semi Hermetic
Compressor Power
15 HP
Compressor Electric Power
12,2 kw/h
Compressor Absorbed Current
22,8 Amp
Refrigerants
R404a
Dimensions (WxLxh)
4500x1600x1700 mm.
