MF-3T-20FT

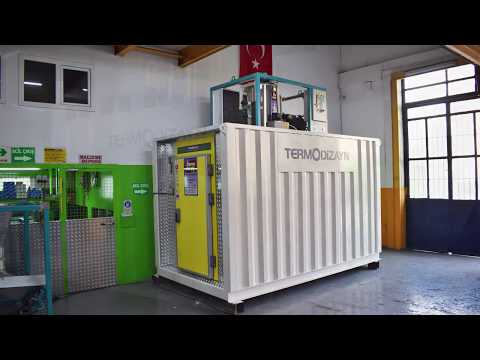

Container Type Flake Ice Machines

ABOUT PRODUCT

You can move, put and rent THERMODESIGN container type flake ice units wherever you want as they are portable. The fact that they are portable offers you many advantages. The major advantage is that it is designed compactly together with a cold storage depot and a device.

A stainless steel spiral transponder system that allows the transfer of the ice to the cold storage depot is a standart accessory.

It operates smoothly under tropical conditions. It is running quietly and has a high efficiency. It can produce hygienic ice thanks to the vertical type ice evaporator and it can work non-stop. The cooling equipment that are used are according to European norms and consists of high-quality equipments.

MODEL PRICE

To see the price please Login or Register.

Get Your Bid

TECHNICAL INFORMATION

Model Name
MF-3T-20FT
Ice Capacity (Per Day)
3000 kg/24h
Ice Capacity (Per Hour)
125 kg/h
Cooling Capacity
18100 watt
Compressor Displacement
56 m3/h
Compressor Power
15 HP
Compressor Electric Power
9,7 kw/h
Compressor Absorbed Current
16 Amp
Compressor Type
Semi Hermetic
Refrigerants
R404
Dimensions (WxLxh)
2200x2450x5850 mm
Ice Discharge Outlet Size
510 mm
Room Temperature
-5 ℃
Cooling Unit Capacity
3300 Watt
Insulation Type
Sandwich Panel
Panel Surface
PVC
Panel Thickness
80 mm
Chassis
Containerized
Weight
~3000 kg

WORKING CONDITIONS

Water Type
Fresh Water
Water Inlet Temperature
20 ℃
Outside Temperature
33 ℃
Condensation Temperature
43 ℃
Evaporation Temperature
-22 ℃
Ice Thickness
1,8 - 2,2 mm
Required water pressure
1,5 bar
Energy
380V/50Hz/3Ph
