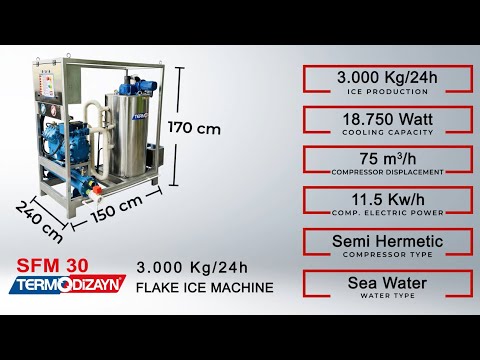

SFM 30

Flake Ice Machine (Sea Water)

ABOUT PRODUCT

Termodizayn on board type ice machines can tolerate shake and wobble of the fishing boats and are specifically designed to withstand marine conditions which causes corrosion. Produces ice with sea water and it’s condenser is also cooled with sea water.

- Ice generator with water-cooled condenser as standard, also available as optional with air-cooled condenser.
- Including control panel and sea water pump

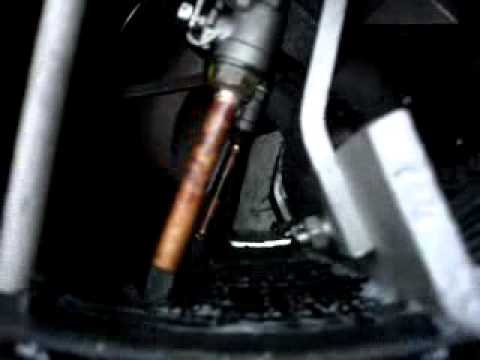

- Ice blade and Ice generator drum are made of stainless steel
- Chassis is made of stainless steel - Fitted with semi-hermetic or screw compressors.
- Refrigerant R404a, R507a or R22
- High condenser and fan capacities are tested under extreme conditions.

MODEL PRICE

To see the price please Login or Register.

Get Your Bid

TECHNICAL INFORMATION

Model Name
SFM 30
Ice Capacity (Per Day)
3000 kg/24h
Ice Capacity (Per Hour)
125 kg/h
Cooling Capacity
18750 watt
Compressor Displacement
75 m3/h
Compressor Power
20 HP
Compressor Electric Power
11,5 kw/h
Compressor Absorbed Current
21,5 Amp
Compressor Type
Semi Hermetic
Condenser Type
Water Cooled (Sea Water)
Evaporator Type
Vertical Type
Refrigerants
R404
Dimensions (WxLxh)
1000x1500x1700 mm
Ice Discharge Outlet Size
460 mm
Weight
690 kg
Required Pump Flow
13,5 m3/h
Chassis
Cr.Ni Stainless Steel Chassis

WORKING CONDITIONS

Water Type
Sea Water
Outside Temperature
45 ℃
Condensation Temperature
40 ℃
Evaporation Temperature
-28 ℃
Ice Thickness
1,8 - 2,2 mm
Required water pressure
1 bar
Energy
380V/50Hz/3Ph
