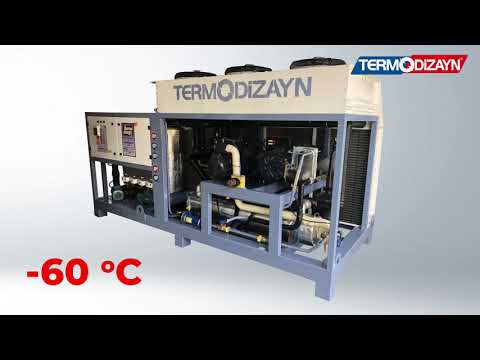

CASCADE 120

Ultra Low Temperature Cascade System Unit

ABOUT PRODUCT

When you need to go lower than the standard -40 °C you need the extra refrigeration power.

Minuz -65 °C is extremely cold and there are naturally only limited products that need tepmeratures lower than -40 °C. Tuna and some other fish speciesare best stored at these ultra low temperatures in order to preserve that “just caught” freshness. Other products include pharmaceuticals, cultures, vaccines, medicines and of course scientific testing environments.

Our products are designed and built for these extreme low temperatures and feature additional insulation for improved K values, strenghted doors and panels to resist the straints of short term vacuum during pull downand the normal T-section floor has been maintained to facilitate maximum air flow under the contents. Internal aliminum checker plates linings replace standard stainless steel for extra panel strenght.

MODEL PRICE

To see the price please Login or Register.

Get Your Bid

TECHNICAL INFORMATION

Model Name
CASCADE 120
Product Inlet Temperature
+10 ℃
Product Outlet Core Temperature
-50 ℃
Room Temperature
-60 ℃
Evaporation Temperature
-65 ℃
Condensation Temperature
+28 ℃
Shock Capacity for Fish
3500 Kg/12 Hours
Cooling Capacity
87400 watt
Compressor Power
180 HP
Compressor Electric Power
100,2 kw/h
Compressor Displacement
521,56 cm3/h
Compressor Type
Double Stage / Piston
Condenser Type
Water Cooling
Water Cooling System
Closed Circuit Chiller
Energy
380V / 50Hz / 3Ph
Refrigerants
R404a
